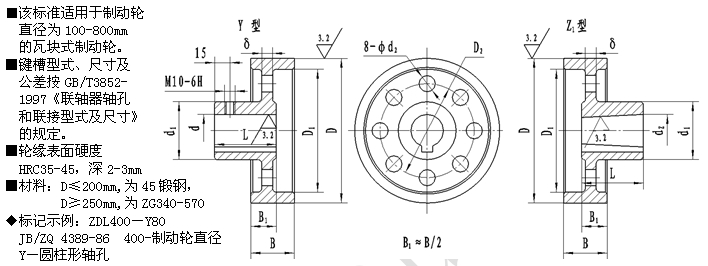

ZDL制動輪基本參數和主要尺寸(JB/ZQ 4389-86)/mm
D
|
Y型軸孔
|
Z1型軸孔
|
B
|
D1
|
D2
|
d1
|
d2
|
δ
|
轉動慣量
kg·m2
|
質量
kg
|
d
|
L
|
dz
|
L
|
ZDL-100
|
25,28
|
62
|
25,28
|
44
|
70
|
84
|
―
|
65
|
―
|
8
|
0.0075
|
3.0
|
30,32,35
|
82
|
30,32,35
|
60
|
ZDL-160
|
25,28
|
62
|
25,28
|
44
|
70
|
145
|
105
|
65
|
30
|
8
|
0.03
|
5
|
30,32,35
|
82
|
30,32,35
|
60
|
ZDL-200
|
25,28
|
62
|
30,32,35,38
|
60
|
85
|
180
|
140
|
100
|
30
|
8
|
0.20
|
10.0
|
30,32,35,38
|
82
|
40,42,45,
48,50,55
|
112
|
40,42,45,
48,50,55
|
84
|
ZDL-250
|
30,32,35,38
|
82
|
30,32,35,38
|
60
|
105
|
220
|
168
|
115
|
40
|
8
|
0.28
|
18.0
|
40,42,45,
48,50,55
|
112
|
40,42,45,
48,50,55
|
84
|
60
|
142
|
60
|
107
|
ZDL-315
(300)
|
40,42,45,
48,50,55
|
112
|
60,65,70,75
|
107
|
135
|
290
(275)
|
200
|
120
|
55
|
8
|
0.60
|
24.5
|
60,65
|
142
|
ZDL-400
|
60,65,70,75
|
142
|
60,65,70,75
|
107
|
170
|
370
|
275
|
175
|
70
|
12
|
0.75
|
60.7
|
80,85
|
172
|
80,85,90,95
|
132
|
100,110
|
167
|
ZDL-500
|
80,85,90,95
|
172
|
75
|
107
|
210
|
465
|
340
|
210
|
90
|
14
|
2.0
|
100.6
|
100,110
|
212
|
80,85,90,95
|
132
|
100,110,120
|
167
|
130
|
202
|
ZDL-630
(600)
|
90,95
|
172
|
90,95
|
132
|
265
|
595
(565)
|
390
|
210
|
120
|
16
|
5.0
|
132.1
|
100,110,120
|
212
|
100,110,120
|
167
|
130
|
202
|
ZDL-710
(700)
|
100,110,120
|
212
|
110,120
|
167
|
300
|
670
(660)
|
435
|
210
|
130
|
18
|
10
|
183.4
|
130
|
252
|
130
|
202
|
ZDL-800
|
130,140,150
|
252
|
130,140,150
|
202
|
340
|
760
|
495
|
230
|
140
|
18
|
16.75
|
230.9
|
|
|
